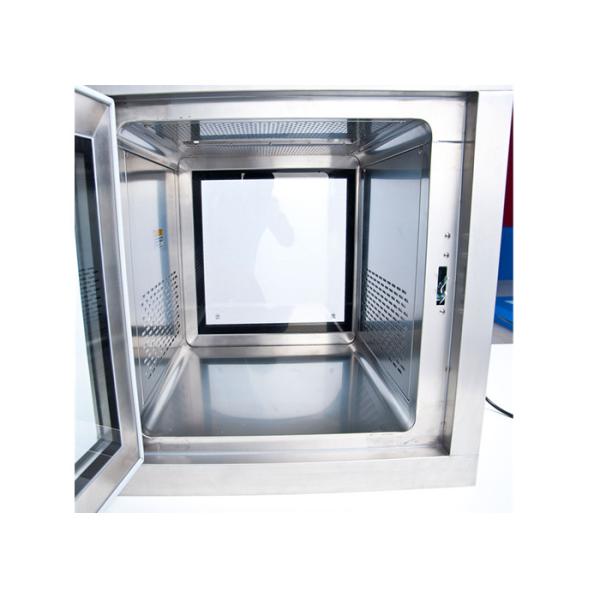

Pharmaceutical GMP Workshop Customized SUS201 Dynamic Cleanroom Pass Box
CUSTOMIZED DESIGN IS AVAILABLE
Wall-Mounted 90 Degree Pass-Thrus
The KEL-PB408 Wall Mounted 90 Degree Pass Thru airlock cleanroom entry system is designed for those cleanrooms where space limits require a 90 Degree turn in the PassThru.
As with all KEL PassThrus, the KEL-PB408 is built with an innovative double wall design, stainless steel integrity, and solid construction.
The KEL-PB408 is built with formed and stitch-welded stainless steel.
Doors are connected with stainless steel continuous flush-mounted hinges, and feature generously sized clear TemperedSafety Glass viewing windows.
Doors are secured with heavy duty over center stainless steel compression latches that tightly seal against closed-cell PVC foam door gaskets.
An optional interlock prevents depressurization from both doors from being opened at the same time.
The double-wall design of the KEL-PB408 features smooth, durable surfaces that are easy to clean.
Mechanical parts are concealed and protected by service panels that are easy to remove for maintenance and cleaning.
The superior engineering of the CAP18W9 design and stainless steel construction means maximum value, flexibility, and ease of use.
It can be mounted flush or center mounted for efficiency with stainless steel mounting frames.
The KEL-PB408 Pass Through maximizes the efficient use of space in cleanrooms, and its elegant look upgrades the appearance of any cleanroom.
Specify KEL-PB408 for the Right-Hand Turn, or KEL-PB408 for the Left-Hand Turn.
Features
Formed and stitch-welded type 304 #4 finish stainless steel construction
Stainless steel continuous flush-mount hinges
Clear tempered safety glass viewing windows
Closed-cell PVC foam door gaskets
Type 316 stainless steel lever compression door latches
Magnetic Interlock
10 Piece Stainless Steel Mounting Frame
Products Parameter:
| MODEL | KEL-DPB500 | KEL-DPB600 | KEL-DPB700 |
| External size (mm) (W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
| Work zone (mm) (W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
| Purification rank | Class 100 |
| Material (Option) | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
| | |
| Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
| UV light | 1 PC |
| Power supply | 220v/50HZ |
| packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) |
